ViaControl TM

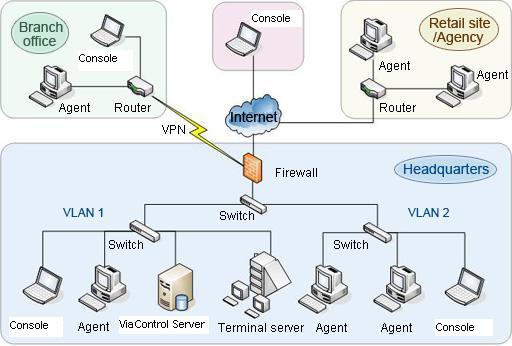

Basic Structure
ViaControl system consists of 3 different components: Agent, Server, and Console. It is used on computers inside the network to enhance its security. Agent is installed in every inspected computer. Server is used for database storage and Agent management. Its main duty is to manage the inspected data. Usually, server should be installed on a server class computer with a large amount of system memory. Console is to audit the computers with Agent installed and examine the log history. In most cases, Console will be installed on the administrator's computer alone, but it can also be installed with Server together on the same computer.
Server |
Server is installed on a computer with high storage capacity and high performance. |
|
Monitor agent computers and distribute polices automatically
Store the data gathered from agent computers
Manage collected data and back up data periodically
|
Console |
Console is installed on an administrator or supervisor’s computer. |
|
Centrally control and monitor all agent computers
View all data and screen snapshots gathered from agent computers
Provide statistical and analysis report
Create control and surveillance policies
|
Agent |
Agent is installed on computers want to monotor/manage. |
|
Execute management policies
Record users’ activities on the agent computers
Periodically send collected data to server
|
System Requirements |
|
Agent OS
Windows 98, Me, NT4, 2000, XP, 2003, Vista, 2008, and 7
|
Minimum Processor: celeron II 433
Memory: 256 MB
Free Disk Space: 256 MB
Recommended Processor: Pentium 4
Memory: 512 MB
Free Disk Space: 1 GB
|
Console OS
Windows 2000,XP,2003,Vista,2008,and 7
|
Minimum Processor: Pentium III 500
Memory: 256 MB
Free Disk Space: 256 MB
Recommended Processor: Pentium 4
Memory: 512 MB
Free Disk Space: 1 GB
|
Server OS
Windows 2000 SP4, XP SP2, 2003 SP1, Vista, 2008,and 7
|
Minimum Processor: Pentium III 500
Memory: 256 MB
Free Disk Space: 10 GB
Recommended Processor: dual-core or quad-cord
Memory: 2 GB
Free Disk Space: 60 GB
|
|
